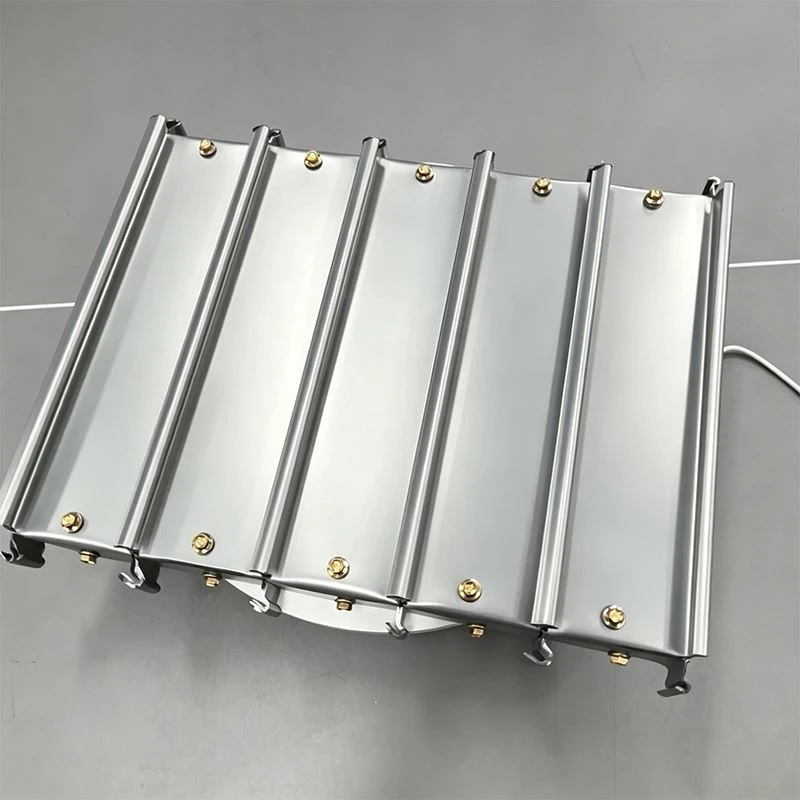

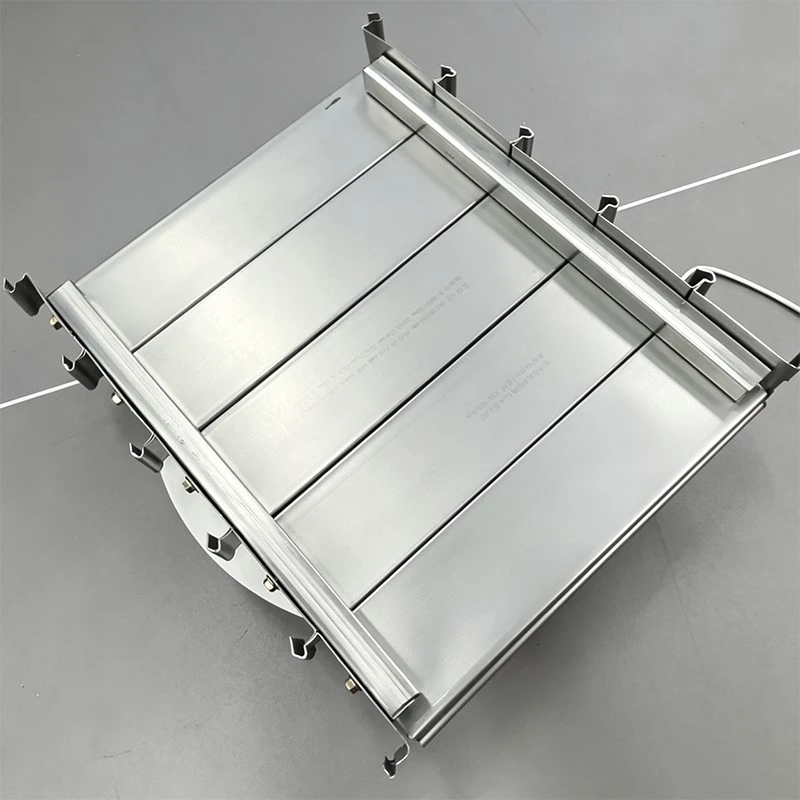

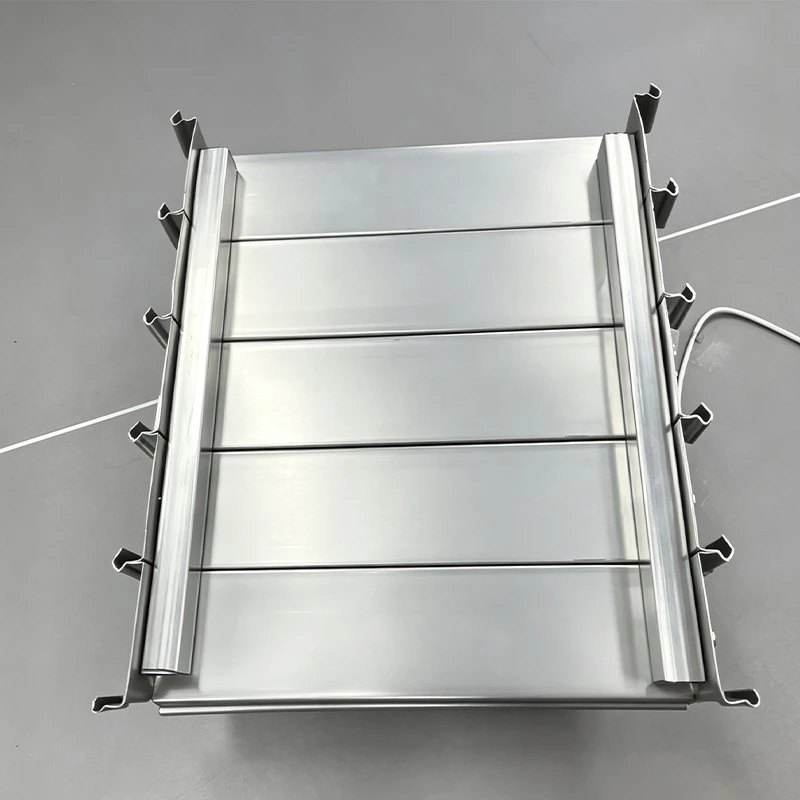

Terracotta Brick Metal Support Backing System

The Terracotta Brick Architectural Facade System is a complete exterior wall solution that combines protection, decoration, shading, and weather resistance. The system fixes terracotta bricks onto a metal support structure to create a stable facade layer. It helps protect buildings from wind, rain, sunlight, and temperature changes.

We design each system according to the project location and local wind pressure requirements. The wind load resistance can be customized from 0.5 kPa to 3.0 kPa based on building height and environmental conditions.

Our factory is located in Qidong, Jiangsu, China. We have our own R&D team focusing on terracotta facade structures and installation solutions. Before shipment, every production batch is inspected for brick size, surface flatness, and moisture content. This ensures stable quality for large-scale architectural projects.

The Terracotta Brick Architectural Facade System has been applied in projects such as the Pudong Branch of the Shanghai Huangpu District Archives. It provides architects and developers with a reliable solution for creating durable and attractive building exteriors.

One major advantage of this system is design flexibility. It can be used for flat walls, curved facades, and customized architectural shapes. The dry-hanging installation method uses stainless steel brackets to fix the bricks onto the supporting structure.
The brackets are available in 304 or 316 stainless steel. For coastal areas with higher corrosion risks, we recommend 316 stainless steel for improved durability. The brick joints are normally designed between 6 mm and 12 mm. These gaps allow movement caused by temperature changes and help improve facade stability.
The terracotta bricks are produced from natural clay without artificial chemical coloring. The natural firing process creates long-lasting colors and textures. The bricks provide good resistance to UV exposure, frost, and acid rain, making them suitable for different climate conditions.
We provide a 10-year warranty and support third-party inspections. During production, customers can receive photos and videos to monitor manufacturing progress. Standard production time is around 25 days, with a monthly production capacity of up to 150,000 square meters.

The Terracotta Brick Architectural Facade System is suitable for commercial buildings, public buildings, residential projects, cultural facilities, and other architectural applications.
The system has a self-weight range of 18 to 42 kg per square meter. We provide free samples for project evaluation. Custom sample development usually takes 15 to 40 days depending on design requirements.
The minimum order quantity is 300 square meters. Customers can combine different colors or brick models within one order. Our production process includes five key steps: order review, material preparation, production scheduling, quality inspection, and logistics planning.
For unexpected production or delivery issues, our team communicates with customers in advance and provides solutions to reduce project delays.
